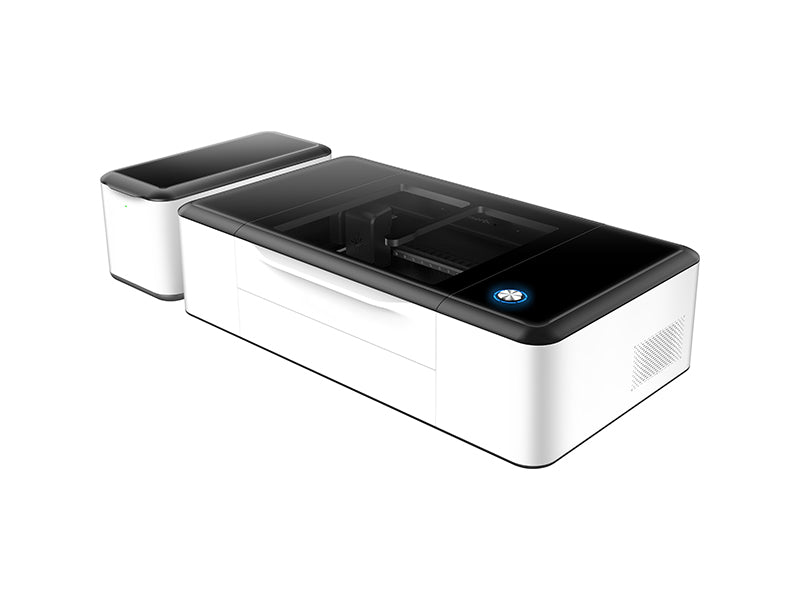

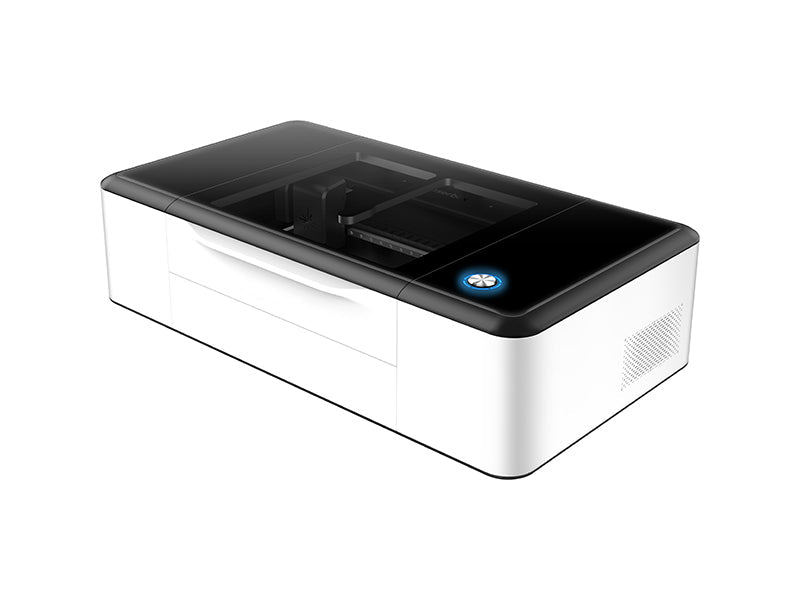

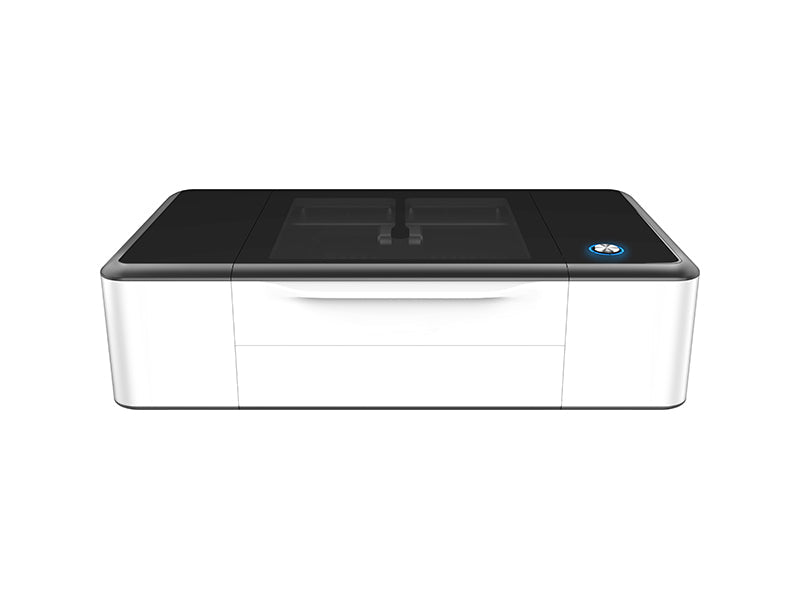

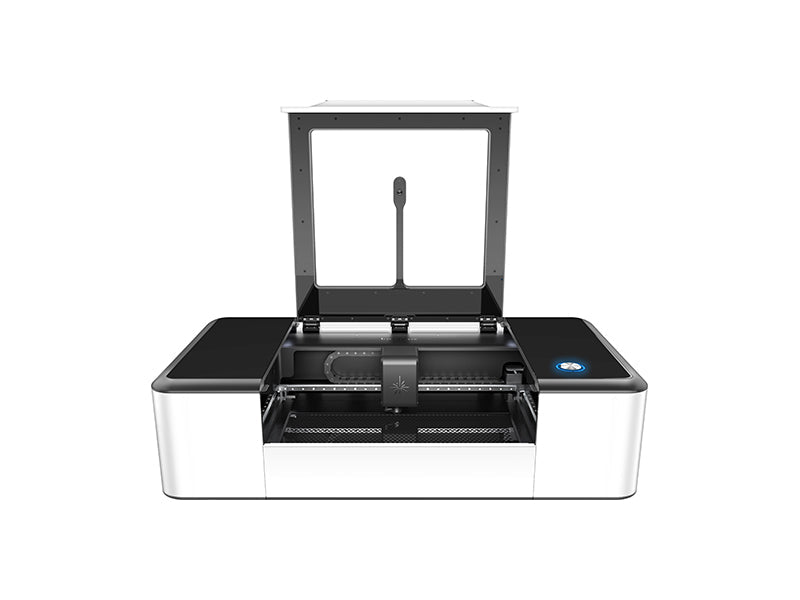

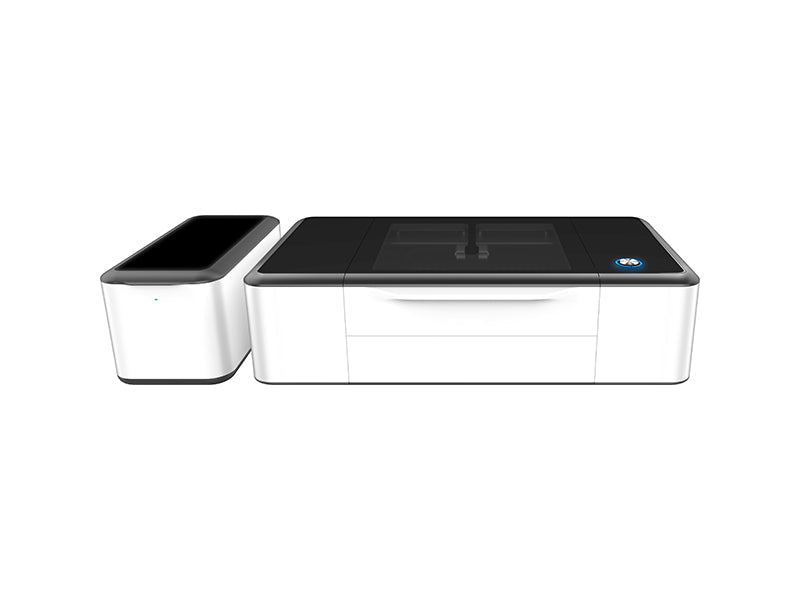

Item Name: Smart Laserbox (Education 2.0)
Item No.: LBOX-SDE2
Laser tube type and power: CO₂ laser 40W
Working area: 500 × 300 mm
Z-axis height: 25mm
Locating system: Visual locating
Visual working area: 490 × 290 mm
Maximum cutting depth:15mm (Paulownia)
Autofocus: Material Recognition Autofocus, Material Set-up Autofocus, Visual Autofocus
Connection:Wi-Fi, USB, Ethernet
Design software:Photoshop, Illustrator, CorelDRAW, AutoCAD, AutoDraw, Solidworks, and etc.
File formats:JPG, PNG, BMP, TIF, DXF, SVG, CR2, and etc.
Operating systems: Windows, macOS
Material capability: Paper, corrugated paper, wood, acrylic, cloth, leather, base plate, ABS-based color board, PET, rubber, glass fiber, plastic, corian and other dozens of materials
Laserbox size: 1.07*0.63*0.43m (0.289/ 65KG)
4*Laserbox material : 0.31*0.17*0.23m (0.049/12kg)
Filter for laserbox: 0.68*0.28*0.22m 6kg (0.0419/6kg)

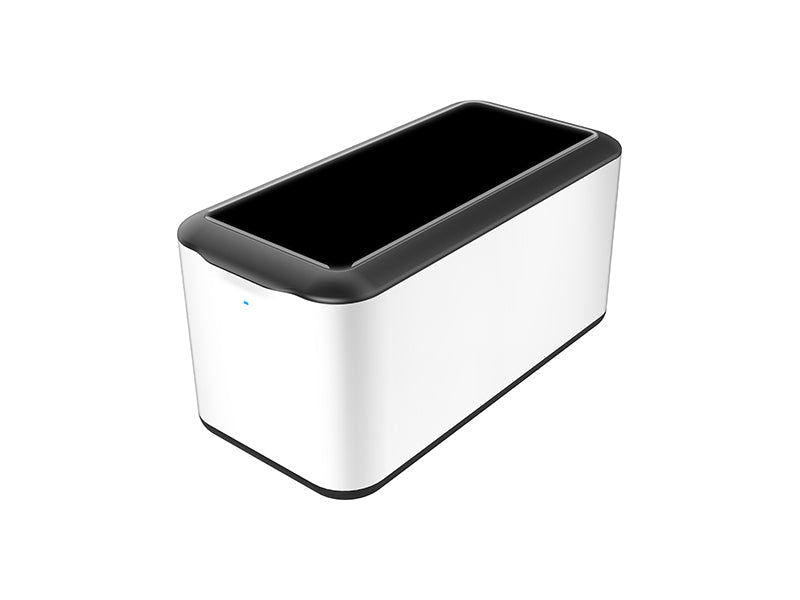

Smoke Purifier for Laser box: 0.633*0.404*0.336m (0.086/15kg)
